THP2000c [Continuous TTO]
- Summary
- Specification
- Demo video
A new-generation thermal transfer overprinter
that uses a cassette unit and achieves high performance
THP2000c
- [Maximum printing speed]
500 mm/sec (30 m/min) - [Maximum printing area]
53 mm(W) x 150 mm(L)
- Print resolution 300dpi
- Radial ribbon save
- Auto calendar
- Barcode printing
- QR code printing
- “EUI2” by SD card
The continuous thermal transfer overprinter THP2000c is a new-generation middle-class model thermal transfer overprinter that uses a cassette unit.
By newly designing the overall control, it will be contributed to the improvement of productivity and quality at the production site by improving print quality, stability, reliability and maintainability, and making it compatible with IoT.
It is mainly suitable for installing on horizontal packaging machines.
Reduce downtime by ribbon cassette unit
It is achieved quick replacement of thermal ribbon and contributed to reduction of downtime.
Improves maintainability and reliability that enhances
production efficiency
Print head can be replaced with one-touch
The print head attachment / detachment mechanism uses a magnet type. One-touch replacement is possible, greatly improving the workability of print head replacement. Since there is no risk of losing parts such as screws during work, the safeness at the production site is improved.
Smooth cassette mounting with ribbon evacuation mechanism
At the same time as opening and closing the lock of the cassette, the ribbon evacuation mechanism works in tandem. Prevents the thermal ribbon from getting caught when the cassette is installed, and realizes smooth cassette replacement.
High durability and low wiring design improve reliability
By adopting a flexible base which is easily bended, it improves durability of the head cables.
Noise resistance has been enhanced by adopting a wiring-saving design that significantly reduces the number of wires and a differential signal system for various signal lines. The reliability of the entire device has been improved.
Reduction of calibration time
Ribbon calibration time when setting a cassette is reduced by up to 85% compared to our existing cassette type thermal transfer printer. It contributes to improving work efficiency when replacing ribbons.
Equipped with new functions to improve and stabilize printing quality
Improved print quality and stability
Smooth drive is realized by the next-generation control / arithmetic device. In addition to our new technology, the improved line speed tracking of ribbon feed control contributes to overall improvement and stability of print quality.
Achieves stable initial printing even in low temperature environments
Equipped with a preheat function that realizes stable printing from the start even in cold regions or at the start of work in the winter morning. This makes it easier to maintain the condition of the print head and enables more stable operation.
Radial ribbon save feature
The feature is using the entire width of the ribbon in radial direction printing. Auto layout of row to letter height.
Color touch panel controller “EUI2”
The color touch panel controller "EUI2" common to EDM is used for the operation interface. The easy-to-understand hierarchical system and large color LCD allow comfortable operation.
[feature]
- Easy operation, item switching, and parameter setting
- Large letters and icons on the top (operation) screen clearly display the machine's operating status
- Item search function by item name and key word
- Displays the preview in the actual print size
- SD card is used as the recording media
Printing sample
[Packaging form]
- Horizontal packaging
- Four-way seal packaging
[Printing data]
- Best-before date
- Expiry date
- Date of manufacture
- Production time
- Lot number
- Factory mark
Specification
| Model | THP2000c |
|---|---|
| Type | Continuous |
| Print method | Thermal transfer |
| Printing resolution | 300dpi (12dots/mm) |
| Maximum printing speed | 500 mm/sec (30 m/min) |
| Maximum printing area | 53mm(W) × 150mm(L) |
| Font size | 24-96 dots (24 size/font) |
| Print extension | Date Format, Date Stamp with Offset, Time, Shot Count, Shift Code, Custom Code |
| Barcode | EAN8, EAN13, ITF, CODE39, CODE128, GS1-128, GS1 DataBar |
| 2-dimensional code | QR code, Micro QR code, DataMatrix |
| Data memory | SD card |
| Thermal printer ribbon | 400 m/roll (Max.) |
| Interface port | RS232C / RS422 / Ethernet (option) |
| Power supply | AC100V/200V, 50Hz/60Hz |
| Power consumption | 420W |
| Body weight | 5.3kg |
| Dimensions | 156mm(W) x 181.5mm(H) x 253mm(D) |
| Configuration | Main body / Power supply box / EUI2 |
| Usage Environment | Temperature : 5℃-40℃ Humidity : Under 90%RH (no dew condensation) |
| Option | Item editing software (GIE) |
※The above specifications may differ depending on the usage conditions, mounting conditions, use of mounting brackets, environment, etc. Specification and other information are subject to change without notice.

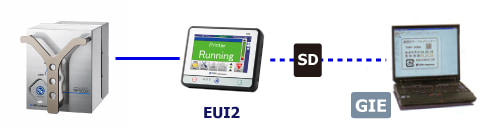

Main unit and related software correlation diagram

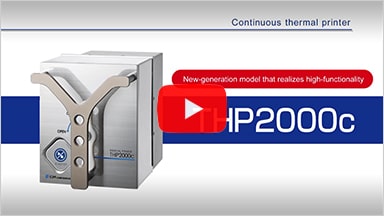

Demo Video

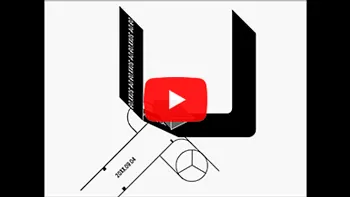

Image of printing mechanism
P type printing（Print along web flow direction）
S type printing （Print across web flow direction）
