LMFe6000-FJ [Applying labels onto empty bags] [Desktop type]

LMFe6000-FJ

LMFe6000-FJ

This machine is a desktop labeling machine with conveyor for applying labels onto empty bags before product filling.

By this automatic label applying system, it contributes to labor saving, productivity improvement and quality improvement.

Productivity
The labeling work by contributing to the improvement of productivity.

Variety registration
Such as a label applying position, setting each type of product can be registered.

Touch panel (EUI2)
Simple selection by the touch panel at the time of product changing.

Labeling image

Labeling image[LMFe6000-FJ]

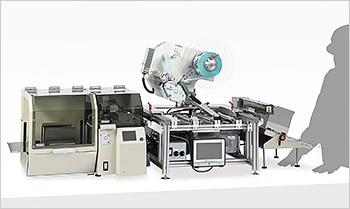

Automatic feeder (option)

LMFe6000NS12-FJV

LMFe6000NS12-FJV

Automatic feeder connection available. The work efficiency of off-line labeling can be dramatically improved.

  • Preset counter
  • Bag loading number:500 sheets
  • Maximum capacity:45 pieces/min (200mm bag length 16.8 m/min speed condition)

Demo video

Pasting an empty bag with "LMFe6000-FJ"
- Easy operation to achieve high quality and quick empty bag pasting

Putting an empty bag with an automatic feeder
- Use an automatic feeder to further reduce the work load

Specification

Model LMFe6000-FJ
Type Desktop empty bag labeling machine
Variety registration 200 (per SD card)
Supported bag size Bag width:70 mm to 285 mm
Bag length:130 mm to 380 mm
Label specification Basement paper width:18 mm to 125mm
Label width:15 mm to 120 mm
Label length:15 mm to 200 mm
Roll diameter (O.D.):Φ300 mm
Paper core (I.D.):Φ75 mm
Conveyor specification Belt width:232 mm
Belt length:700 mm
Transfer speed:2 m/min to 24.5 m/min (fixed speed at the operation)
Power supply AC100 V, 600 VA, 50/60 Hz
Operating environment Temperature : 5℃-40℃
Humidity : Under 90%RH (no dew condensation)

※The specification may differ from conditions of use. Specification and other information are subject to change without notice.
